CLOSED CIRCUIT COOLING TOWER MANUFACTURES IN INDIA

Closed Circuit Cooling Tower / Closed Loop Cooling Tower operates during a manner the same as standard cooling towers, except that the smart heat to be rejected is transferred from the method fluid to water and close air directly through a heat exchange coil. The coil serves to isolate the method fluid from outside atmosphere, keeping it clean and contamination free during a control system, so making two separate circuits.

  • Primary / Internal circuit in which the process fluid circulates inside the coil
  • Secondary / External circuit sprays circulating water from the basin over the coil which evaporates to reject heat to the environment.

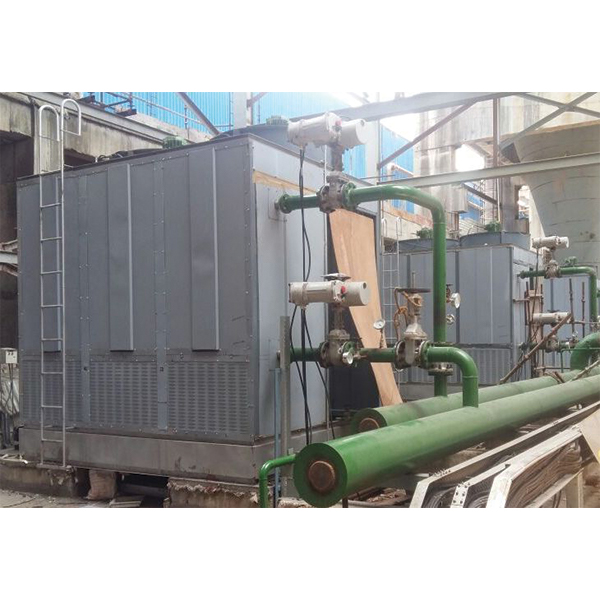

Closed Circuit Cooling Towers

Closed Circuit Cooling Towers

Closed Loop Cooling Tower V/S Conventional System

Cooling System employing a control system cooling is way easier in comparison to traditional system. The Intermediate device, secondary pumps - piping & valves of the traditional Secondary Circuit ar replaced with single control system cooling unit having inherent primary & secondary circuits.

Operating Principle

  • This process fluid is circulated through the coil of the closed loop cooling tower.
  • Heat from the process fluid is rejected through the coil tubes.
  • Part of the heat is removed directly by the downward induced air and discharged to the surrounding.
  • Rest of the heat is rejected to the water cascading down over the tubes.
  • Simultaneously air is drawn in through the air inlet louvers at the base of the closed loop cooing tower.
  • A small portion of the water is evaporated which removes the heat. The warm saturated air travels through the drift eliminator & discharged by the fan to the surrounding thereby reducing drift water loss.
  • The remaining cooled water is collected in the basin at the bottom of the closed loop cooling tower. Spray pump connected to the basin pumps the water to be sprayed onto the coil.

Types of cooling coil we used:

GI Coil
Stainless Steel Coil
Carbon Steel Coil
Copper Coil
Product Range
Model HTE-50 HTE-60 HTE-80 HTE-100 HTE-120 HTE-135 HTE-150 HTE-170 HTE-200 HTE-250 HTE-300
Cooling Capacity(Kcal/h) 150000 180000 240000 300000 360000 400000 450000 510000 600000 756000 900000
Water Flow(m3/h) 30-32 40-43 49-51 59-61 70-72 80-82 90-93 102-105 125-128 150-153 180-182
Model Cooling Capacity(Kcal/h) Water Flow(m3/h)
HTE-50 150000 30-32
HTE-60 180000 40-43
HTE-80 240000 49-51
HTE-100 300000 59-61
HTE-120 360000 70-72
HTE-135 400000 80-82
HTE-150 450000 90-93
HTE-170 510000 102-105
HTE-200 600000 125-128
HTE-250 756000 150-153
HTE-300 900000 180-182

Above specs are for common use. We can also customize.

Design condition of cooling capacity based on inlet temp 37° C ; Outlet 32° C ; Wet bulb temp 28° C.

Please contact our representative for suitable selection of the equipment based on the site conditions and application.

Enquiry
Design Your Own Cooling System

Advantages of Closed Circuit Cooling Tower

Closed circuit cooling tower is used in the following applications: water source heat pumps, industrial processes, air compressors, weld machine cooling, mould water cooling, power plant auxiliary cooling, furnace cooling, transformer cooling, closed condenser loops, critical systems, and systems requiring plume elimination.

Clean process fluids sustain the performnace of high efficiency components. Save on energy consumption by operating in “Free Cooling Mode” during the winter

Reduces or eliminates cleaning the heat exchanger. Extends the life of the equipment

Free Cooling without an intermediate heat exchanger. Dry operation during winter months. Variable speed pumping to conserve energy without the potential of scaling the unit.

Lower volume of recirculation water reduce water treatment cost. Dry operation and adiabatic modes reduce or eliminate water consumption.

Compact single piece of equipment conserves space replaces three components (cooling tower, heat exchanger, and pump arrangement)

Closed Circuit Cooling Tower Components

Cooling Tower Packing

Cooling tower packing is one of the most important parts of a cooling tower. The packing ensures maximum contact between air and water to enable cooling.

FIL12 | FIL19 | FIL27 | FILOSS19 | ABS | FILRC
Water Distribution System

Engineering, production and installation of open and closed water distribution systems for your cooling tower, including the appropriate nozzles.

CLOSED WATER DISTRIBUTION OPEN WATER DISTRIBUTION NOZZLE
Air Intake Louvers

Air intake louvers prevent water splashes from the water collection tank and prevent larger debris from arriving in the water tank.

Motor and Fans

All parts of a cooling tower are important, but it is certainly important to exercise the necessary care of the drive gear of your cooling tower, these being the turning parts of a cooling tower.

FAN | FAN STACK | MOTOR
Drift Eliminators

Drift eliminators have the purpose of preventing droplets or smaller aerosols from being taken by the air flow from the cooling tower.

H130RC | RC50 | RC10 | RC20 | RC30

Features of Closed Cooling Towers

  • Uniform water distribution system with large orifice nozzle to reduce clogging.
  • Specially designed axial air-foil fan blades for low noise levels and lower power consumption. Moving parts are placed in such a way that they can be easily removed and repaired.
  • Highly efficient sprinkling pump to ensure low power consumption and low noise.
  • We have a wide base working platform to ease the tedious maintenance process.
  • We have a water level control system that controls that maintains a constant level of water in the Cooling tower basin.
